ESD Workstations
ESD Workstation Manufacturer in Bengaluru
ESD anti-static workbench manufacturer in Bengaluru — ESD-safe worktops, laminates and grounded workstations for electronics labs, built to your spec.
Manufactured at our own unit in #336/10, Hosur Road, near ICICI Bank, Bommanahalli, Bengaluru — no reseller markup.
ESD workstations built around your process
An ESD workstation is a workbench designed for handling static-sensitive electronics. The frame, the ESD-safe worktop, the earthing path and the operator’s wrist strap are all part of one system — and the system only works if every part of it is specified together.
We are a direct ESD anti-static workbench manufacturer in Bengaluru, fabricating antistatic tables and ESD-safe workstations at our Bommanahalli workshop for electronics labs, PCB assembly and rework areas, test and inspection benches, and repair stations. Benches are built to the layout of your line and to the requirement your process defines — not pulled off a shelf and hoped to fit.
ESD workbench configurations for electronics assembly

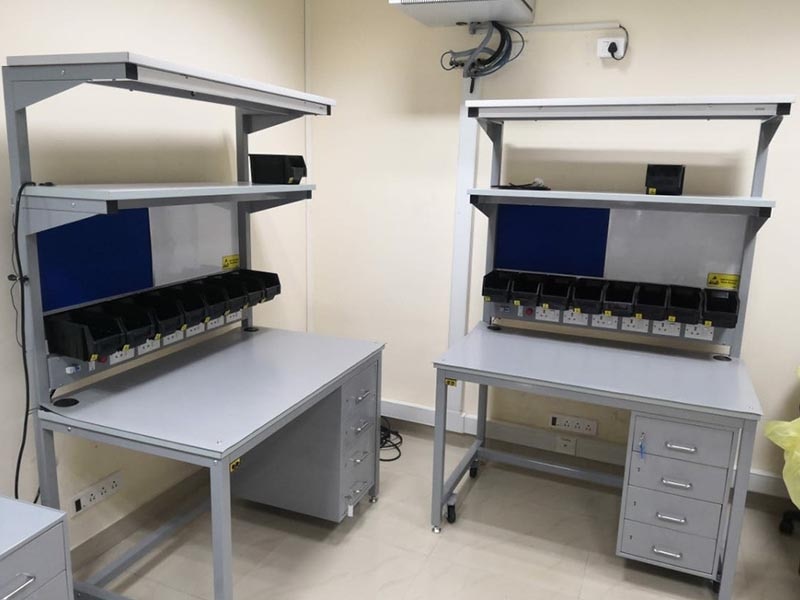

Single-operator benches
A standard bay for one technician, with an earthing point, task-lighting provision and under-bench storage.
Line benches
Continuous runs for assembly or inspection lines, built as linked bays so the earthing path and services run through the whole run rather than being repeated bay by bay.
Back-to-back benches
Two facing rows sharing a central services spine. Efficient on floor area and simpler to distribute power and grounding across.
Test and instrument benches
Heavier construction with upper shelving for instruments, and cable routing that keeps test leads accessible without leaving them across the working surface.
Height-adjustable benches
Where the same bay is used by operators of different heights, or where work alternates between seated inspection and standing assembly.
ESD-safe worktops, laminates and grounding
The working surface is where anti-static performance is won or lost. We build benches with:
- ESD-safe worktops and laminates selected to the surface-resistance range your quality system specifies, rather than a single house standard.
- Dissipative ESD mats where a mat-and-stud arrangement suits the work better than a laminated top.
- Built-in grounding hardware — earthing studs, cables and connection points fabricated into the frame, not added afterwards, with a defined point for the mat and a separate point for the operator’s wrist strap.
We do not publish blanket claims about what our benches achieve, because the honest answer depends on the surface and grounding package chosen for your order. Give us your figures and we build to them.
Specifying an anti-static workstation
This is the part worth taking slowly. ESD requirements vary by industry, by customer and by component sensitivity — there is no single specification correct everywhere.
- Tell us your requirement, in numbers. If your standard, your quality system or your customer specifies a surface-resistance range or an earthing arrangement, give us those figures. We build the bench to meet what you specify.
- Earthing path. Decide where the bench earths to and how many earthing points each bay needs.
- What sits on the bench. Soldering stations, microscopes, test instruments and fume extraction all affect depth, upper shelving and power provision.
- Power and data. Outlet count and position per bay should be fixed before manufacture.
- Working height and posture. Seated inspection and standing assembly are different bench heights — specify per bay if the line does both.
- Storage. Component bins, drawer units and shelving, sized to what the operator actually reaches for.
Materials, finishes and verification
Frames are fabricated in mild steel section, welded and powder coated. Upper structures, shelving, bin rails, lighting rails and power raceways are integrated into the frame. Under-bench storage is available as fixed or mobile drawer and cupboard units.
Where your process requires verification, testing of the installed surface and earthing arrangement should be carried out on site as part of commissioning. We build to your specification; confirming performance in your environment is a measurement, not a claim, and it should be done with instruments.
Who this suits
Electronics manufacturers, EMS and PCB assembly operations, R&D and test labs, repair and rework centres, and quality-control areas handling static-sensitive components. Also relevant to college and institute electronics labs where students handle boards and components. We build in our Bommanahalli workshop, install across the Bengaluru manufacturing belts from Electronic City to Bommasandra, and deliver ESD benches to clients across India.
Discuss your requirement
ESD benches are effectively always custom, because they are built around a specific line and a specific process. For a line installation we recommend building and commissioning one bay first, running real work on it, then releasing the rest of the order. Send us your bench layout, your process notes and any surface-resistance or earthing figures your quality system specifies, and we will quote against them.
